Lab summary

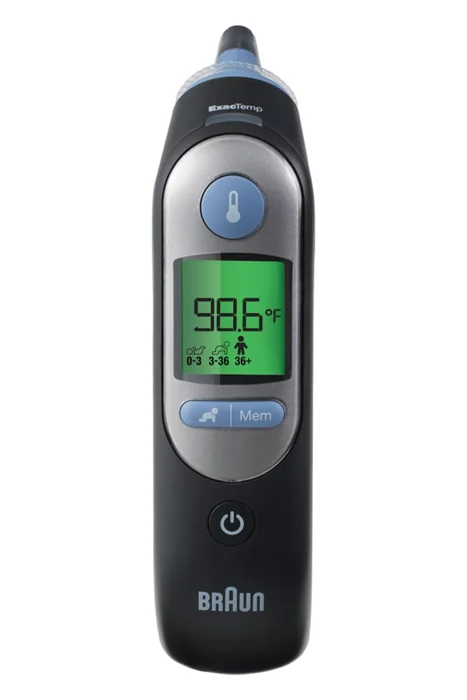

- The ThermoScan 7 reads the infrared energy given off by the eardrum and nearby tissue and displays an oral-equivalent body temperature. It needs a fresh disposable lens filter for every reading, runs on two AA batteries and stores the last nine readings [1].
- Braun states a maximum laboratory error of ±0.2 °C (±0.4 °F) between 35 and 42 °C and a clinical repeatability of ±0.14 °C [1]. We found no independent published test of this model against a core-temperature reference.
- The main limit is technique: probe angle, a used filter, earwax and recent time on a pillow all shift ear readings, per the manual [1]. It cost $64.73 on Sep 30, 2026, shipped and sold by Amazon.com.
Table 1What it measures, and how
We read Braun's US/Canada instruction manual for the IRT6520 (revision dated June 2022, published on Braun Healthcare's site), the Amazon listing and FDA's 510(k) database on Sep 30, 2026. The thermometer reports one quantity; the color display is a label applied to that number, not a second measurement.
| What it measures | Sensor type | Validation evidence | Limits |
|---|---|---|---|
| Body temperature, displayed as an oral equivalent (°F or °C, 0.1° resolution) | Infrared sensor reading heat from the eardrum and surrounding tissue [1] | Manufacturer figures for laboratory error and clinical repeatability; stated to meet ASTM E1965-98 [1] | Displays 34–42.2 °C (93.2–108 °F) only; operates in rooms of 10–40 °C [1] |
| Probe position (a check, not a measurement) | ExacTemp stability light and beeps [1] | None published; described in the manual | A "POS" error appears if the probe did not stay steady in the ear canal |
| Color band for the reading (label, not a measurement) | Age Precision button: 0–3 months, 3–36 months, 36 months to adult [1] | Cutoffs based on a 2011 pediatrics journal article cited in the manual; not an accuracy test | The manual asks you to consult a physician when the display shows yellow or red, and also when symptoms are present with any color |
Strip 1Accuracy strip
Two cells are Braun's own figures, one is a pooled result for ear thermometers as a class, and one marks the gap for this model. Results from one study population may not transfer to you.
- Independent peer-reviewed study
- Manufacturer or regulatory filing data
- No published data found
- Laboratory error, 35–42 °C (95–107.6 °F)±0.2 °C (±0.4 °F) maxBraun manual specification; ±0.3 °C outside that range; test setup and n not stated[1]
- Clinical repeatability±0.14 °C (±0.26 °F)Braun manual specification; study population and n not stated[1]
- Ear vs. rectal readings, infrared ear thermometers as a class (not the ThermoScan 7)Mean difference 0.29 °C; 95% LoA −0.74 to 1.32 °CSystematic review and meta-analysis, 31 comparisons, n = 4,441 children, various ear devices[2]
- ThermoScan 7 vs. a core-temperature referenceNo published data foundPubMed searches ("IRT6520", "ThermoScan 7"), Sep 30, 2026; the one study found used it as the reference, not as the device under test
The pooled result predates this model and mixes many ear thermometers, settings and modes. It shows how far ear and rectal readings can differ in children; it is not the ThermoScan 7's accuracy.
NotesReading the evidence
Two kinds of accuracy figure appear on a thermometer's spec sheet, and they answer different questions. Laboratory error is measured against a controlled heat source: it tells you how well the electronics convert infrared energy into a number. Braun gives a maximum of ±0.2 °C between 35 and 42 °C [1]. The manual notes that the ASTM E1965-98 standard sets this same ±0.2 °C laboratory requirement for infrared thermometers between 37 and 39 °C, compared with ±0.1 °C for glass and electronic contact thermometers under their own standards. Clinical repeatability, ±0.14 °C for this model, describes how closely repeated readings on the same person agree. Neither figure tells you how close an ear reading is to the temperature deep inside the body, and Braun does not describe the study behind the repeatability figure.
That second question, agreement with a core reference, has been studied for ear thermometers in general. A systematic review in The Lancet in 2002 pooled 31 comparisons of infrared ear and rectal readings in 4,441 children [2]. On average the two sites differed by only 0.29 °C, but the 95% limits of agreement ran from −0.74 to 1.32 °C. In plain terms, a single ear reading could sit up to about 1.3 °C below or 0.7 °C above the rectal value. The authors concluded that ear readings were not a close enough stand-in where precise body temperature is needed. The review covered devices of that era. The ThermoScan 7 adds a positioning check and, per its Amazon listing, a pre-warmed tip, but we found no published study that repeats the comparison for the ThermoScan 7.
The manual is candid about site differences. It says normal body temperature is a range that varies by site, person and time of day, recommends practicing on healthy family members to learn their usual ThermoScan readings, and asks users to tell a physician that a reading came from the ear [1]. It also says the device is only intended to measure human body temperature, not to assess any medical condition.
On regulation: clinical thermometers are medical devices in the US. We searched FDA's 510(k) database for Braun, Kaz and Helen of Troy thermometer entries on Sep 30, 2026 and found entries for other ThermoScan models, including the ThermoScan 3 (K161933) and the IRT 4000 series, but could not match the IRT6520 to a specific 510(k) record [3]. We therefore do not state a clearance number for it. The manual lists the standards Braun says it meets, including ASTM E1965-98 and ISO 80601-2-56 [1].
An ear thermometer measures temperature; it does not tell you why a temperature is high or low. Readings drift with probe angle, a used or missing filter, a dirty lens, earwax, a hearing aid, ear drops, very hot or cold rooms, and lying with one ear on a pillow [1]. The manual says it is not intended for pre-term or small-for-gestational-age newborns and asks for prompt professional advice for young infants and several other groups whenever a reading is raised. A reading, or a symptom, that worries you is a reason to talk to a clinician.
ProcedureGetting cleaner readings
These steps come from Braun's manual. They remove common sources of error; they do not make an ear reading equal to a core measurement.
Fit a new lens filter every time
Push the probe straight into a filter in the box and pull it out. The thermometer will not measure without one, and a used filter affects accuracy [1].
Let the thermometer and the person settle
After time in a very hot or cold room, or after removing a hearing aid, wait 20 minutes. If the thermometer itself was stored outside 10–40 °C, leave it in the room for 30 minutes [1].
Choose the ear and the age setting
Use the same ear each time, because left and right can differ. Use the ear that was facing up if the person was lying on one side, and the untreated ear if drops were used. Select the age group before measuring [1].
Insert fully and aim at the opposite temple
Insert the probe fully into the ear canal, pointing toward the opposite ear or temple, then press and release the start button. Hold it steady until the long beep and the solid ExacTemp light [1].
Keep the lens clean
If you ever measure without a filter, wipe the probe tip gently with alcohol on a cotton swab and let it dry. Never submerge the thermometer [1].
LogPrice and where it is sold
On Sep 30, 2026, the Amazon listing for the Braun ThermoScan 7 Digital Ear Thermometer (color Black, model IRT6520US) showed $64.73, shipped and sold by Amazon.com, in stock, with a free 30-day refund or replacement window. Replacement lens filters (Braun LF 40) are sold separately [1]. The Amazon listing may show a different price on another day.
Who should look elsewhere
- Anyone who needs a temperature for a medical decision in a specific setting should use the method a clinician recommends; for some ages and situations clinicians prefer a particular measurement site.
- Parents of pre-term or small newborns in their first four weeks: the manual says the device is not intended for them.
- People who dislike ongoing costs: every reading uses a disposable filter.
- Anyone who wants readings logged to a phone: this model stores nine readings on the device and has no app connection.
Sources
- Kaz USA / Helen of Troy. Braun ThermoScan 7 IRT6520 instruction manual, US/Canada edition (revision dated June 2022): indications, warnings, technique, specifications, standards. Accessed Sep 30, 2026. link
- Research team in Liverpool, UK. Systematic review and meta-analysis of infrared ear versus rectal temperature readings in children, 31 comparisons. The Lancet, 2002 (PMID 12241932). link
- U.S. Food and Drug Administration. 510(k) Premarket Notification database; ThermoScan entries found (e.g. K161933, K103800) but none matching the IRT6520 (openFDA 510(k) search by applicant and device name, Sep 30, 2026). link
This entry is educational and is not medical advice. Consumer wellness gadgets are not diagnostic devices; readings can be wrong. If a reading worries you, or you have symptoms, talk to a qualified clinician rather than relying on a gadget.
