Lab summary

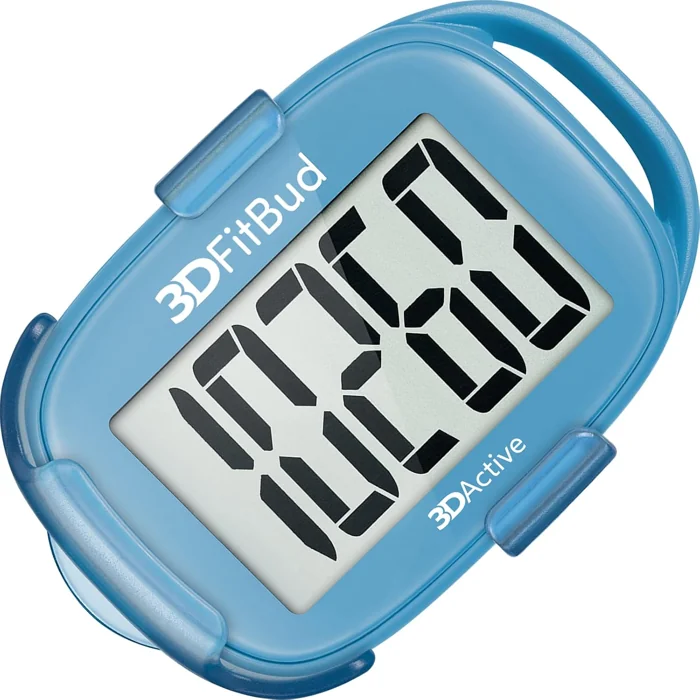

- The 3DFitBud (model A420S, made by 3DActive) reports one quantity: steps, up to 99,999, on a large LCD. It runs on a CR2032 coin cell that the maker says lasts up to 12 months, and it has no Bluetooth, app, clock or distance readout [6][7].
- We found no published study that tested this model. The general evidence for waist-worn step counters is decent at ordinary walking speeds (waist devices averaged a 3% error in a 258-adult treadmill study) and much weaker at slow speeds [1].
- Placement matters: a pocket or a lanyard is not the same as a firm waist clip, and full days of real life are harder than a treadmill [2][3]. Price on Sep 30, 2026: $29.99 for the Light Blue version, sold by 3D Active.
Table 1What it measures, and how
Specifications come from the Amazon listing, the 3DActive product page and the A420S user guide (cover marked V1.1), all read on Sep 30, 2026. The device counts; it does not estimate anything else.
| What it measures | Sensor type | Validation evidence | Limits |
|---|---|---|---|
| Step count (display up to 99,999) | Three-axis ("3D tri-axis") motion sensor, per the listing and brand page | None published for this model. Evidence for other waist-worn counters [1][3] | Other counters lose many steps at slow walking speeds; accuracy depends on how firmly the unit is carried [1][6] |
| Start threshold (a counting rule, not a measurement) | Firmware logic described in the user guide | Described by the maker only [6] | Counting begins or resumes after 10 uninterrupted steps; the guide says those first steps are then added, so very short bouts may be handled differently |
Strip 1Accuracy strip
The strip lists published results for step counters of the same general kind, plus one honest blank for this model; results from other devices and other study groups may not transfer to this one or to you.
- Independent peer-reviewed study
- Manufacturer or regulatory filing data
- No published data found
- 3DFitBud A420S, any settingNo published data foundPubMed searches for "3DFitBud" and "3DActive pedometer", Sep 30, 2026; no accuracy figure in the user guide or on the brand page
- Waist-worn devices, treadmill at normal speeds (4.0–6.4 km/h)MAPE 3%vs. directly observed steps, 21 devices (not this model), n = 258 adults[1]
- All devices, treadmill at slow speeds (0.8–3.2 km/h)MAPE 40%vs. directly observed steps, same study, all wear locations pooled by the authors, n = 258[1]
- Pants pocket and neck positions, one free-living dayAPE 30.7%–36.9%Omron HJ-203 (not this model) vs. a reference count, n = 54 adults[2]
- Waist pedometers, all waking hours of one day71%–91% of stepsFitbit Zip, Yamax SW-200 and two wrist settings, as grouped by the authors; vs. hand-tallied chest-camera video, n = 12[3]
None of these studies tested the 3DFitBud. They show how step counters of this type behave in general and are included for context, not as this model's accuracy.
NotesReading the evidence
A step-count validation study needs a trustworthy count to compare against. In the laboratory that is usually direct observation: a researcher counts steps with a hand tally, live or from video. The INTERLIVE network, a European research consortium, reviewed 85 eligible validation papers and published a protocol listing the criterion measure, walking speed, wear position and statistics among the things a study must report [5]. The two numbers you will see most are MAPE (mean absolute percentage error: how far off, ignoring direction) and a percentage of actual steps (below 100% means undercounting).
The largest data set here is the CADENCE-adults study, led from the University of North Carolina at Charlotte and published in the International Journal of Behavioral Nutrition and Physical Activity in 2022 [1]. Its 258 participants walked 5-minute treadmill bouts while wearing several of 21 devices at the ankle, thigh, waist and wrist, and observers counted the steps. At normal speeds, waist-worn devices averaged a MAPE of 3%. Across the slow speeds, 0.8 to 3.2 km/h, the average for all devices rose to 40%. The authors describe very slow walking as the main source of reduced performance. A smaller treadmill study of three waist pedometers, 14 participants and 100-step trials (Telemedicine and e-Health, 2016) found errors between 87.11% and 95.98% at 1 km/h, and between 22.46% and a 0.70% overcount at 3 km/h [4].
Placement is the second variable. The 3DFitBud's listing names a waist clip, a pocket, a bag and a neck lanyard. A Ghent University study (Journal of Science and Medicine in Sport, 2012) had 40 adults wear an Omron pedometer in a pants pocket, in a carrier bag and around the neck [2]. In controlled tests the absolute percentage error ranged from 0.1% to 14.0%; the pocket did worst, especially at slower speeds, and the neck position did best. Over a free-living day with 54 adults, errors were 30.7% to 36.9% in both the pocket and the neck position. Results are not uniform across devices: a 2009 study of two other Omron models reported errors under 3.0% at hip and pocket positions in scripted and self-paced walks, with a backpack position at 3.4% [8].
Free-living days are the hardest test. In a University of Tennessee study (Medicine & Science in Sports & Exercise, 2018), 12 adults wore a chest-mounted camera aimed at their feet for all waking hours, and researchers tallied every step from the video [3]. Eleven of the counting methods recorded fewer than 100% of actual steps; the waist-worn Fitbit Zip and Yamax SW-200 were in a group that recorded 71% to 91%. Short, stop-start movement around a home or office is exactly what simple counters handle least well, and the 3DFitBud's 10-step start threshold is one design answer to that trade-off, with no published test of how well it works.
This is a consumer step counter, not a medical device, and no published study has checked this model. Expect the count to drift furthest from reality during slow walking, stop-start movement, and when the unit swings loose in a bag, a loose pocket or on the lanyard. Read the number as a rough daily tally for comparing one day with the next, not as an exact figure.
ProcedureGetting cleaner readings
Setup and carrying steps from the 3DActive user guide, plus one check borrowed from validation practice. None of this guarantees an accurate count.
Activate it once
Slide the unit out of the clip, peel off the demo sticker, pull the insulation tab from the battery cover and slide it back into the clip. It wakes when it senses movement or when the RESET button is pressed [6].
Carry it firmly
The guide says pedometers need steady forward walking and a stable position. It suggests the clip on a waistband, a tighter pocket, or wearing the lanyard under a layer of clothing so the unit does not swing [6].
Reset at the same time each day
Hold RESET on the back for 3 seconds to return the count to zero. There is no memory of past days, so write the number down first if you keep a log [6].
Run a 100-step tally check
Reset, then walk 100 steps at your usual pace in your usual carrying position while counting aloud or with a hand tally, and compare. Repeat at a slower pace and in a second position. This mirrors the direct-observation method studies use [5]; it tells you about your own gait, not about accuracy in general.
Mind the battery and water
Replace the CR2032 cell with the positive side up, using a coin to open the cover. Keep coin cells away from children, as the guide's battery warning stresses, and do not submerge the unit [6].
LogPrice and where it is sold
On Sep 30, 2026 the Amazon listing (ASIN B07DWHPF8F, Light Blue, model A420S) showed $29.99, in stock, sold by 3D Active and shipped from Amazon, with a free 30-day refund or replacement window. The listing offers other colors; we priced only Light Blue. The box contains the counter with its battery installed, a waist clip, a neck lanyard and a printed user guide, and the guide states a 2-year warranty from the purchase date [6].
Who should look elsewhere
- Anyone who needs step data for a medical or rehabilitation program should use the device and process their clinician chooses.
- People who want distance, active time, history or phone sync: this model shows only today's steps. A GPS watch or a tracker with an app fits better, with the caveat that wrist placement had the weakest step accuracy of the four locations in the largest study cited here [1].
- People whose everyday walking is mostly very slow or shuffling: both treadmill studies cited here found that step counters lose many steps at slow speeds [1][4].
- Swimmers and anyone who wants a counter to wear in water: the guide says not to submerge it.
Sources
- CADENCE-adults study: a catalog of accuracy, bias and precision for 21 step-counting devices at slow, normal and fast treadmill speeds and four wear locations, 258 adults. International Journal of Behavioral Nutrition and Physical Activity, 2022. PubMed 36076265 · full text (PMC)
- Validity and reliability of an Omron HJ-203 pedometer worn in a pants pocket, a carrier bag and around the neck, controlled and free-living tests. Journal of Science and Medicine in Sport, 2012. PubMed 22483530
- Video-recorded validation of 14 step-counting methods across all waking hours of one day, 12 adults. Medicine & Science in Sports & Exercise, 2018. PubMed 29381649
- Step-count error of three waist-worn commercial pedometers at 1, 2 and 3 km/h on a treadmill, 14 participants. Telemedicine and e-Health, 2016. PubMed 26451900
- INTERLIVE network expert statement and checklist for validating consumer wearable and smartphone step counts. British Journal of Sports Medicine, 2021. PubMed 33361276
- 3DActive. 3DFitBud Simple Step Counter, Model A420S, User Guide (cover marked V1.1; the same guide is linked from the Amazon listing). Accessed Sep 30, 2026. PDF
- 3DActive. Pedometer – 3DFitBud Simple Step Counter, product page and specifications. Accessed Sep 30, 2026. link
- Validity and reliability of Omron HJ-151 and HJ-720ITC pedometers at waist, pocket and backpack positions, 47 adults. Medicine & Science in Sports & Exercise, 2009. PubMed 19204582
This entry is educational and is not medical advice. Consumer wellness gadgets are not diagnostic devices; readings can be wrong. If a reading worries you, or you have symptoms, talk to a qualified clinician rather than relying on a gadget.
